Your device
with CODESYS

Use the CODESYS Control runtime system to create your IEC 61131-3 controller

As a device manufacturer, you want your devices to be programmable with CODESYS. You would also like the applications on your devices to be developed with CODESYS according to IEC 61131-3. To achieve this, you need the appropriate software: the CODESYS Control runtime system. This system has to be implemented on your device.

You have two options:

Purchase the runtime system in the form of the CODESYS Runtime Toolkit. Thanks to the modularity and scalability of CODESYS Control, you can adapt the runtime system to almost any platform and requirements. Our experienced CODESYS project engineers will support you in this. CODESYS Control is constantly being further developed as a product. Once you have implemented the software, your device becomes an industrial controller.

Your second option: Install a suitable SoftPLC from the CODESYS Store on your hardware and use the free CODESYS Control Extension Package to adapt the SoftPLC to your requirements.

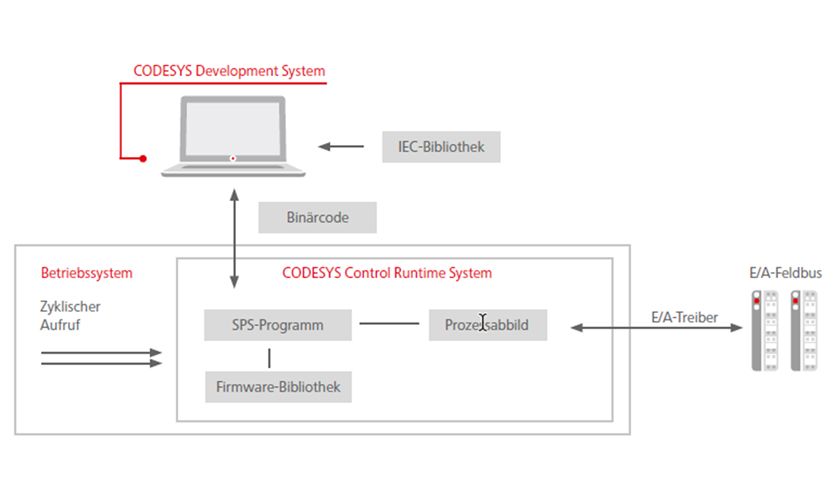

Schematic representation of the CODESYS Control Runtime System, showing the communication between the PLC program, firmware library and I/O fieldbus.

Tasks and functions of CODESYS Control

  • Communication with the CODESYS Development System, e.g. for status and log information, display of variable values, execution of commands
  • Loading, managing and executing the compiled application code
  • Debugging the application within the CODESYS Development System with functions such as writing/forcing variables, managing breakpoints, displaying sequence control, memory dump, etc.
  • Handling of I/O systems and fieldbuses using appropriate drivers
  • Provision of security functions to protect data and know-how, e.g. authorized access, signing, communication encryption, certificate handling
  • Execution of the optional add-on products, e.g. CODESYS TargetVisu / WebVisu or CODESYS SoftMotion for implementing coordinated movements

The CODESYS Runtime Toolkit

By purchasing the CODESYS Runtime Toolkit, you receive everything you need to implement the runtime system for a control platform:

Components of the runtime system in the form of object or source code, depending on the system environment

Comprehensive integration manual (online) for the implementation of the runtime system

Documented customization interfaces for own components or extensions

Preconfigured object and source files for your new device (in the case of embedded systems: System configurator for tool-guided component selection and configuration)

Kick-off workshop (online) for developers tasked with porting and expanding the runtime system, as well as accompanying implementation support

The runtime system includes optional additional functions to enable the device to perform other typical tasks in the automation environment:

The runtime system includes optional additional functions to enable the device to perform other typical tasks in the automation environment.

Your additional options:

Fieldbus & Communication

Configuration and use of I/Os via typical fieldbus systems such as CANopen®, EtherCAT® or PROFINET.

learn more

Safety

Pre-certified safety components for simplified implementation of safety control systems.

learn more

Visualization

Operation and monitoring of control systems via graphical user interface (visualization) directly on the device or in the web browser.

learn more

Motion CNC Robotics

Control of coordinated movements with multiple axes through real-time calculation of waypoints or paths. Convenient realization of robotic functions using kinematic models.

learn more

Fieldbus & Communication

Configuration and use of I/Os via typical fieldbus systems such as CANopen®, EtherCAT® or PROFINET.

learn more

Safety

Pre-certified safety components for simplified implementation of safety control systems.

learn more

Visualization

Operation and monitoring of control systems via graphical user interface (visualization) directly on the device or in the web browser.

learn more

Motion CNC Robotics

Control of coordinated movements with multiple axes through real-time calculation of waypoints or paths. Convenient realization of robotic functions using kinematic models.

learn more

Security & Redundancy

Protection of operation against sudden failures through redundancy function and persistent storage of data.

learn more

Communication

Communication with external systems via standardized or lean proprietary interfaces, e.g. PLCHandler, OPC UA Server / Client or Pub Sub, MQTT

learn more

Industry 4.0 & IIoT

Technologies for Industry 4.0 and IIoT including cloud-based administration platform.

CPU performance

Optimized use of CPU performance through multi-core management.

Features of CODESYS Control

Scalable functionality:

Customizable to the performance and memory configuration of the target device, for different 32-bit and 64-bit CPU platforms (CISC/RISC), preconfigured for the ordered target platform (for embedded platforms: delivery with a system configurator)

Runtime system as a product:

Permanently tested quality, proven in millions of industrial applications, implementation possible in a short time

Delivery depends on the system environment in the form of object or source code:

Simple adaptation to different operating systems and development environments (toolchains), often based on reference implementations

Documented customization interfaces:

Customizable or expandable depending on the properties of the devices and the requirements

Ready-to-use for Microsoft Windows / Linux® / VxWorks®:

Tests on reference platforms immediately possible, SoftPLC available for standard system platforms (e.g. IPCs, Raspberry Pi). Further information and download in the CODESYS Store.

Integrated security functions:

Secure the device, e.g. against unauthorized operation or duplication of the application code, and protect communication in Industry 4.0 environments

Supported platforms / reference platforms

Standard platforms

CPU family

x86-compatible CPUs (full 32- / 64-bit support)



Arm-based CPUs (Arm®v6-Armv9), Arm® Cortex® CPUs (Thumb®2 Instruction Set: Mx, Ax, Rx)



Power Architecture®: PowerPC® and derivatives



Infineon AURIX™ TriCore™

With operating system

Windows (with / without own real-time extension), Linux (optional with real-time extension OSADL), VxWorks*, QNX®

Linux (optional with OSADL real-time extension), VxWorks*, QNX, without operating system (only for Cortex M3, M4, R4)

Linux (optional with real-time extension OSADL), QNX, VxWorks*

Without operating system (TC1798)

*Wind River Partner Program Silver

Other possible target device platforms

Intelligent devices based on other CPU platforms can be equipped with CODESYS Control on request. Reference implementations (see below) are available for frequently used combinations of CPU and operating system. With customer-specific adaptation support or services, CODESYS Control can be implemented on almost all operating system platforms.

Reference platforms for embedded systems

CODESYS Control can be used on almost all platforms. The runtime system is regularly tested and updated on the reference platforms listed below.

Platform / CPU

TriCore / TC1798

Arm / CortexR4

Arm / CortexM4

Arm / CortexM7

Hardware

Infineon TriBoard TC1798

TI TMS570™ MCU Development Kit

MCBSTM32F400

STM32H743I-EVAL, STM32H753I-EVAL

Toolchain

Tasking®

Code Composer Studio™ V5.1.0

Keil® / IAR, ST/Link V2

STM32CubeIDE 1.7.0





CODESYS Store How to get

How to get

Order the CODESYS Control Runtime Toolkit specifically for your system configuration and with the desired additional options. For each CODESYS-compatible device, a runtime license is required for operation once implementation is complete.
